Description

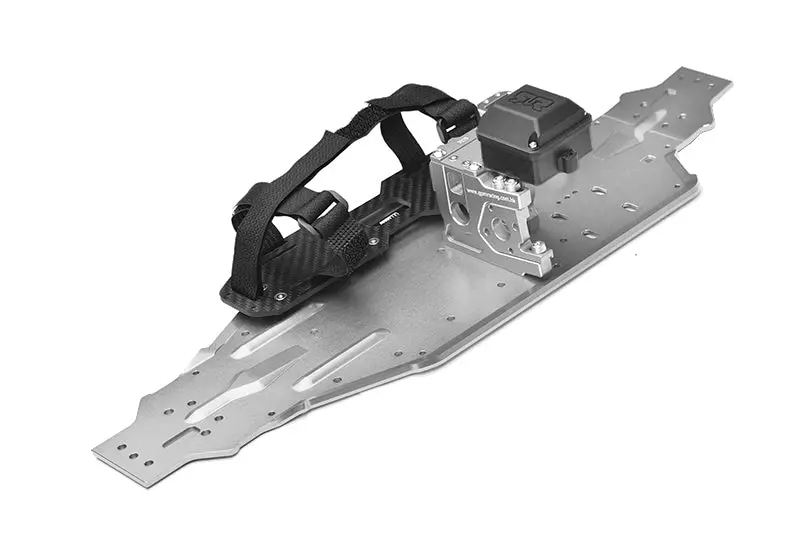

- Chassis plate upgraded to aluminum 7075-T6, chassis thickness 4mm (original 3.2mm), reinforced edges 5mm thickness, and adding groove in between to help reduce bending. Reserved position for extended motor on the electric seat (motor mount available separately).
- Aluminum 7075-T6 servo mount and battery compartment integrated. The battery compartment retains the original quick-release voltage plate, convenient for disassembly and installation of the servo mount. The fixing strip of the carbon fibre battery panel at the bottom is made of aluminum 7075-T6, which enhances the firmness of the servo mount and the battery compartment. The open design with Velcro is compatible with different sizes of batteries
- The reverse quick release version is compatible with the installation of 4985. 1717 and other motors, can be easily powered by 8S. The convenient quick release motor base is redeveloped by GPM to effectively prevent the displacement of the motor. The motor hole is reserved for 3mm/4mm, which can be compatible with the installation of multiple types of motors.

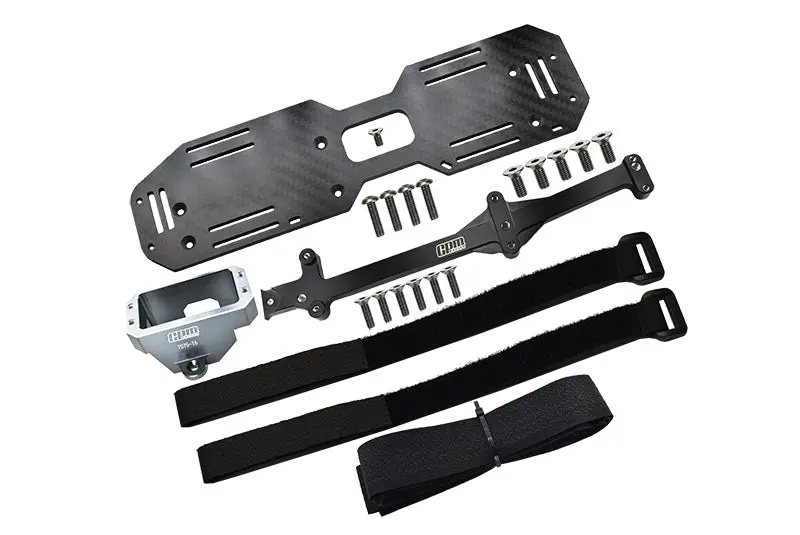

- Package includes : Chassis Plate-1pc ; Aluminum fixing strip-1pc ; Carbon Fibre battery panel-1pc ; Square buckle Velcro-2pcs ; Velcro-1pc ; Servo mount-1pc ; Flat Head Screw 4*10-5pcs, 3*10-6pcs, 3*6-1pc ; Round Head Screw 3×12-4pcs ; Differential & motor mount-6pcs ; Stainless steel flat head screw 4×12-5pcs, 3×14-2pcs, 3×8-4pcs ; Stainless steel round head screw 4×12-2pcs, 4×10-4pcs, 3×8-2pcs ; Stainless steel cap head screws 4*16-2pcs, 3*12-1pc ; Stainless steel washer 1*4*8-2pcs, 1*3*6-1pc ; ARRMA AR320422 radio box-1pc. (P.S. : Some screws are already installed on the product).
- Original stock part number : 9522 + 9626 + 9584.
