Description

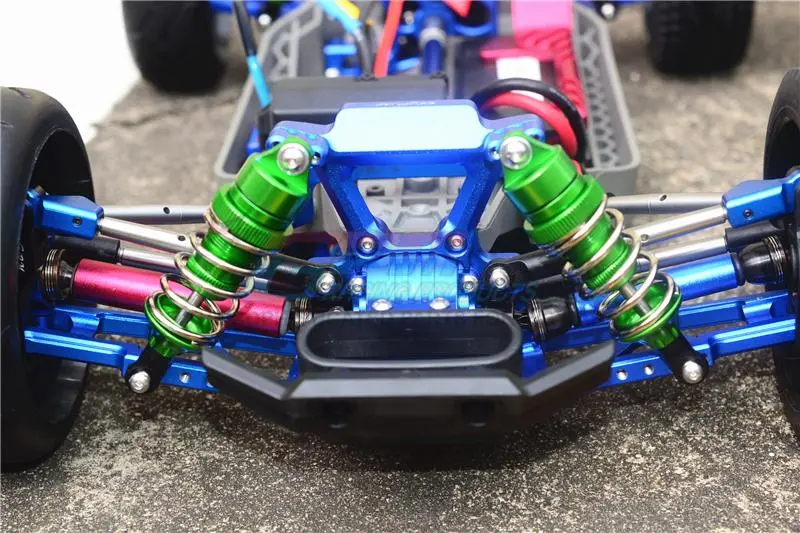

- Shock length is made shorter than original (F: 75mm / R: 80mm) to lower the car height, lowest setting is 6mm from ground. Shock shaft is made thicker than original to achieve greater durability. Spring coil diameter 2.6mm. Extra set of 2.2mm spring coil is provided for more powerful and stable use. Upgrade to this combo to achieve lower center of gravity suitable for more high-speed drive on flat surface roads.
- CVD shafts are made from Harden Steel #45 combined with aluminum 6061T6 body for more sturdiness and lightweight. Spring steel hex widener for adding 3mm on each side of the wheel (+6mm in total), widened wheel track increases stability of the vehicle. Metal rim with rubber tire provides more precise wheel travel direction.
- Special Note : When used in SLASH models, due to the lower body height, the car shell will fall down and hit the tires. Please place the provided aluminum collars between the body post and the shock mount to support the car shell. Use different size collars for different adjustment of the shock angle. When the body is at the highest, use front 8mm with rear 12mm collars. When the body is at the lowest, use front 12mm with rear 16mm collars.

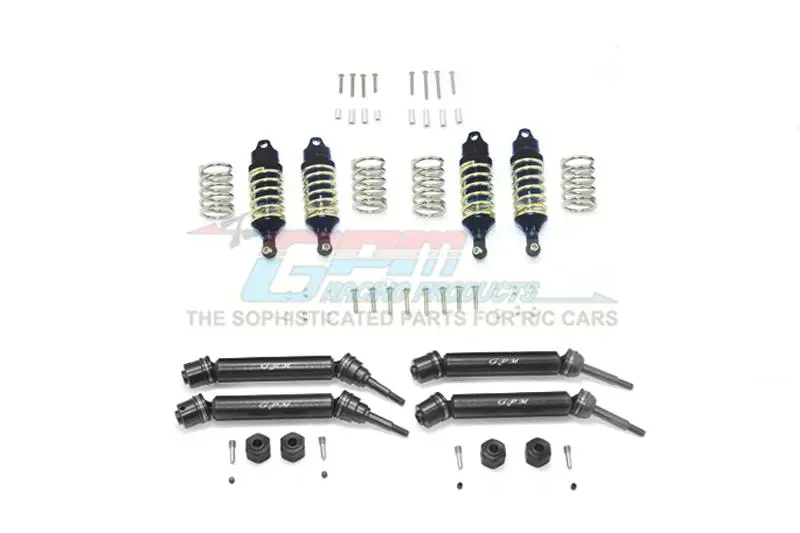

- Package includes : Front Wheel 2pcs ; Rear Wheel 2pcs ; Front CVD 2pcs ; Rear CVD 2pcs ; Spring Steel Hex 4pcs ; Front Shock 2pcs ; Rear Shock 2pcs ; Short Spring 2pcs ; Long Spring 2pcs ; Stainless Steel Round Head Screw 3×14 4pcs, 3×16 6pcs, 3×20 4pcs, 3×25 2pcs ; 3x6x2.5 Aluminum Collar 4pcs ; 3m Collar 4pcs ; 3m Washer 4pcs ; 3x6x8 Aluminum Collar 2pcs ; 3x6x12 Aluminum Collar 4pcs ; 3x6x16 Aluminum Collar 2pcs ; Screw Pin M4x2.5×12 4pcs ; 4×2.5 Silicone O-Ring 4pcs ; 3×3 Screw Shaft 2pcs.
- Will fit : 1/10 Traxxas Rustler 4X4 VXL (67076-4), Slash 4X4, Slash 4X4 LCG, Slash 2WD (Original stock part number : 6864+6867+6851X+6852X+1654X+6871+6872).
